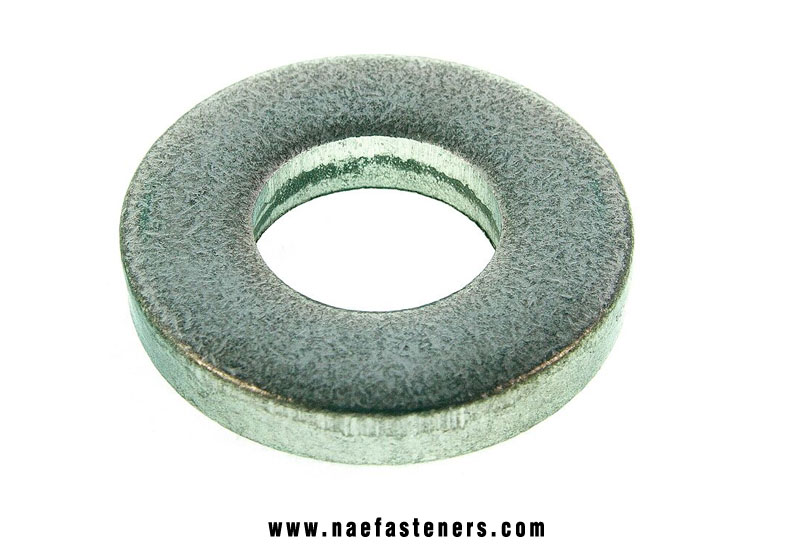

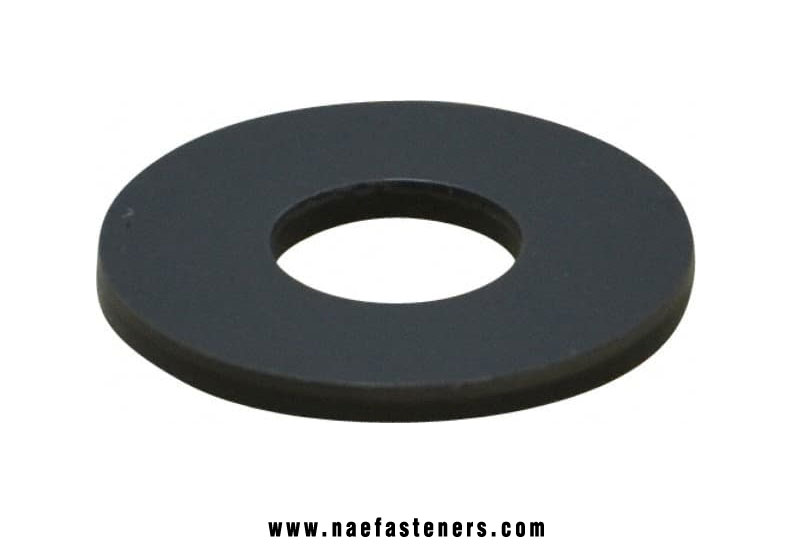

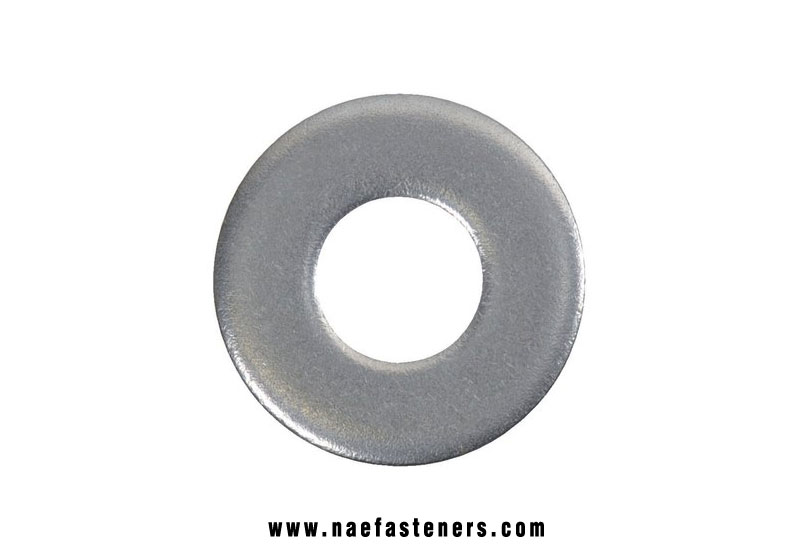

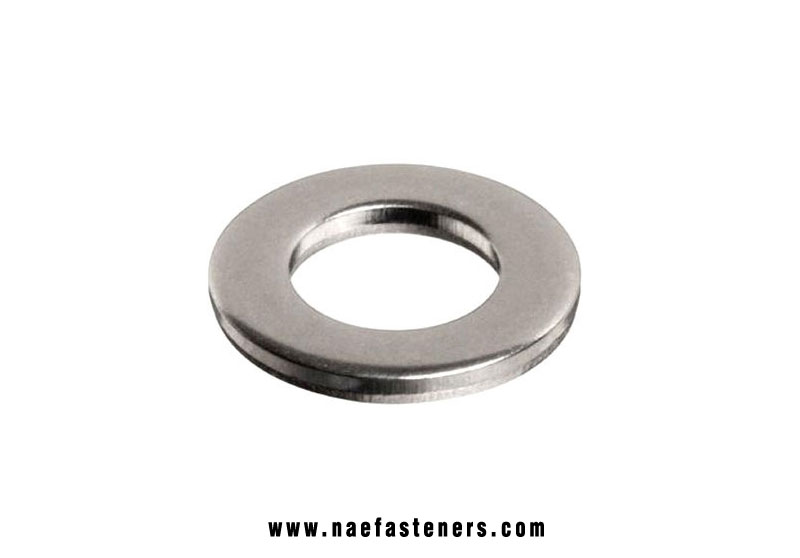

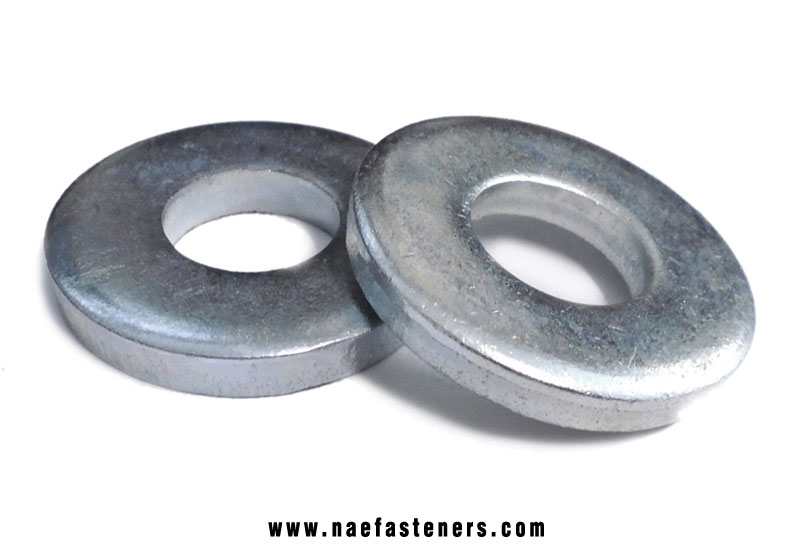

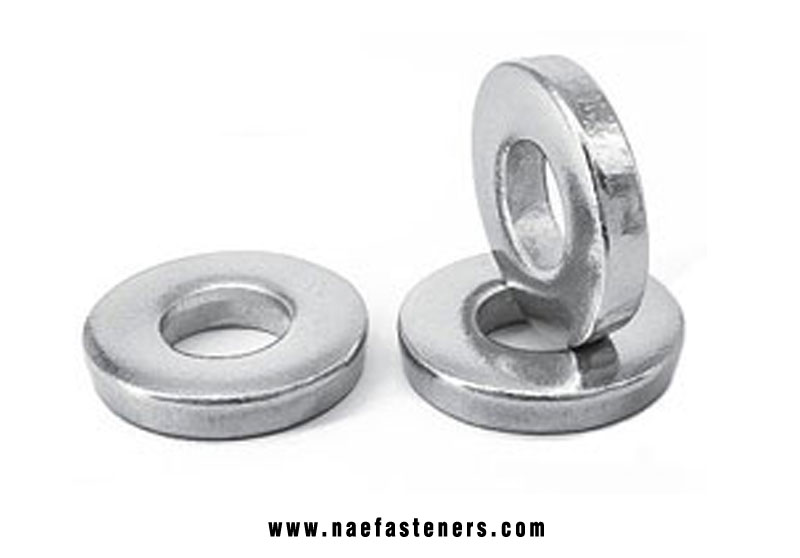

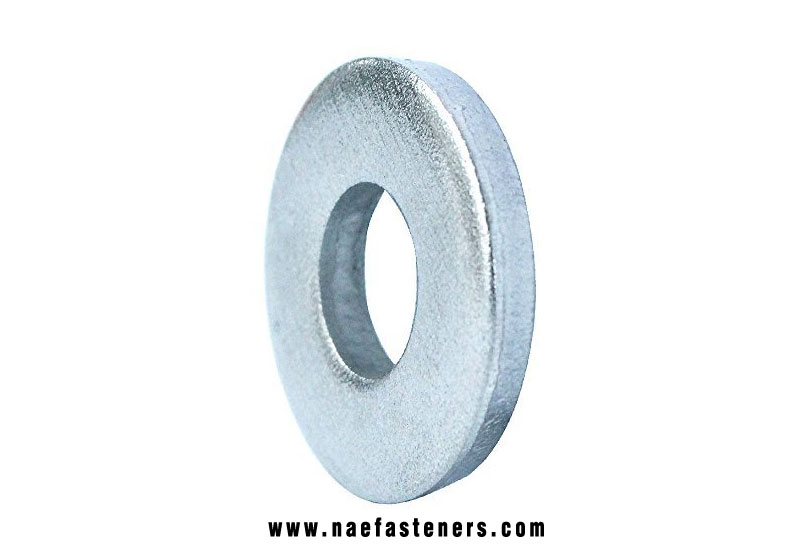

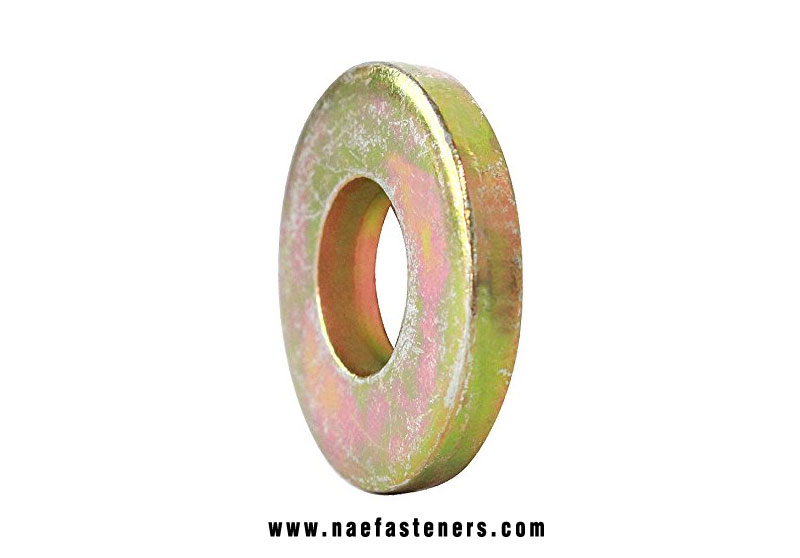

DIN 9021 Washers
These NAE Fasteners Private Limited washers, as the name suggests, are used in heavy duty applications. Much thicker than other forms of equivalent nominal sizes, tough and corrosion resistant with a larger outer diameter. Manufactured to DIN 9021 and used with bolts with heavy type spring pins, where a larger bearing surface area is required. Navnaagar Industries are manufacturers and exporters of DIN 9021 washers in India.
Description
- Standard: DIN 9021
- Material: Low Carbon Steel, Mild Steel, High Carbon Steel, Boron Steel
- Raw material can be used as per customer requirement.
- Finish: Zinc Plain, H.D.G Phosphating, Black Plain, Galvanized
DIN 9021 Washers ( Dimensions / Weight Chart )
| d Nom. | M3 | M4 | M5 | M6 | M7 | M8 | M10 | M12 |
| d1 | 3.2 | 4.3 | 5.3 | 6.4 | 7.4 | 8.4 | 10.5 | 13 |
| d2 | 9 | 12 | 15 | 18 | 22 | 24 | 30 | 37 |
| s | 0.8 | 1 | 1.2 | 1.6 | 2 | 2 | 2.5 | 3 |
| KG/1000 PCS | 0.349 | 0.774 | 1.46 | 2.79 | 5.29 | 6.23 | 12.2 | 22.2 |
| d Nom. | M14 | M16 | M18 | M20 | M24 |
| d1 | 15 | 17 | 20 | 22 | 26 |
| d2 | 44 | 50 | 56 | 60 | 72 |
| s | 3 | 3 | 4 | 4 | 5 |
| KG/1000 PCS | 31.6 | 40.9 | 67.4 | 76.8 | 139 |
