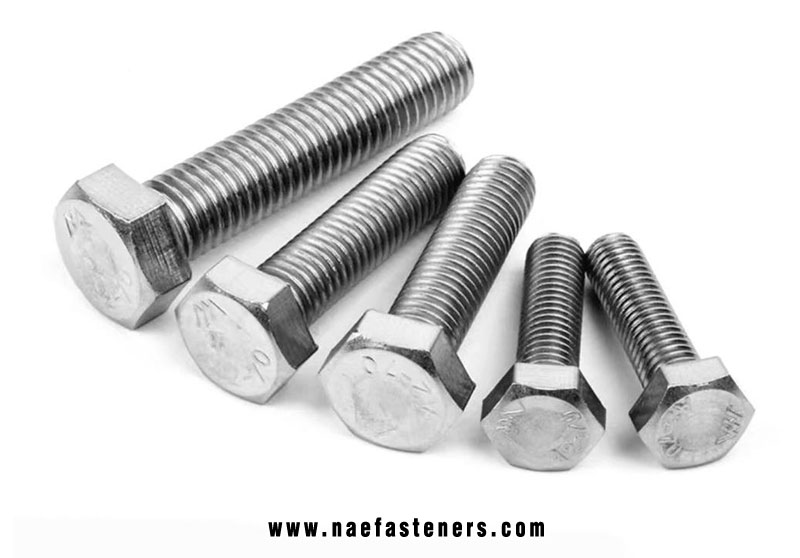

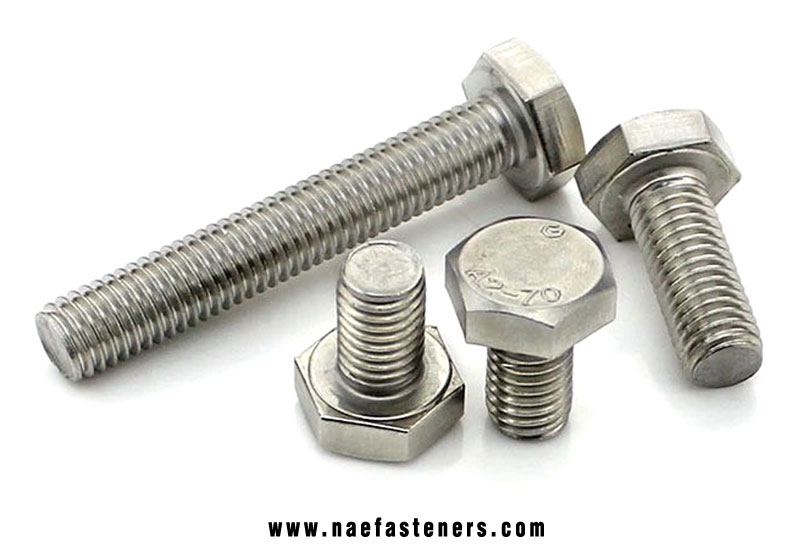

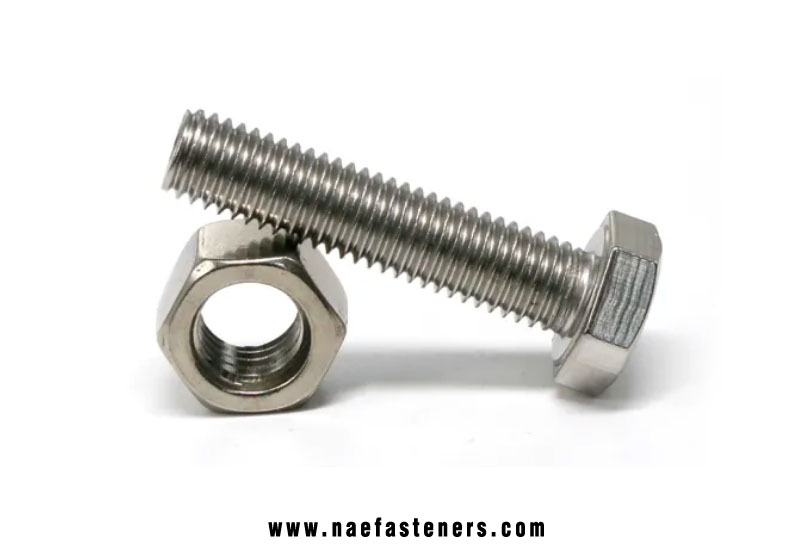

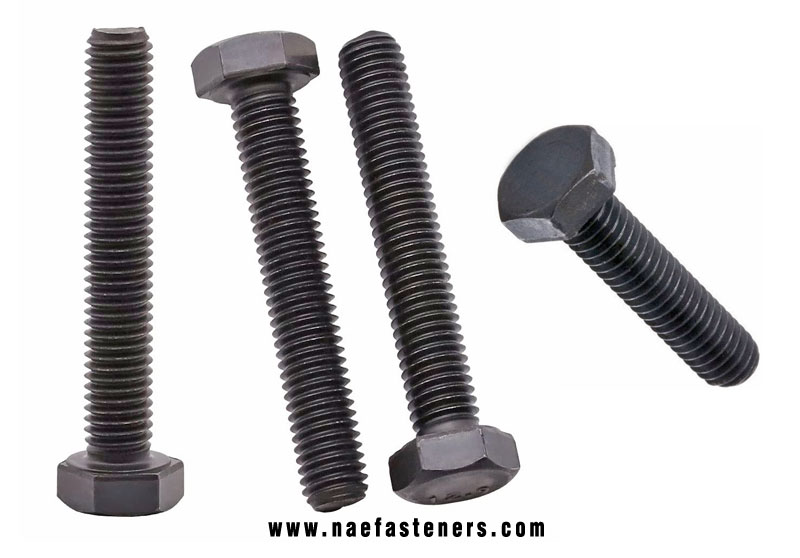

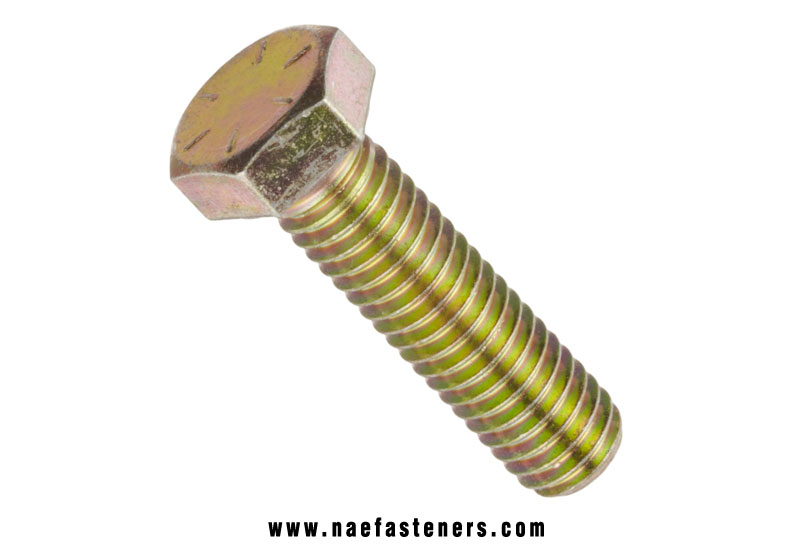

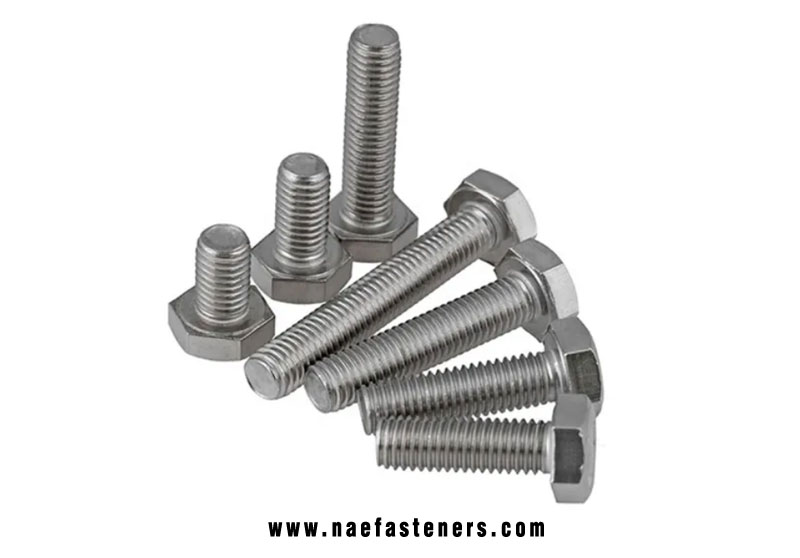

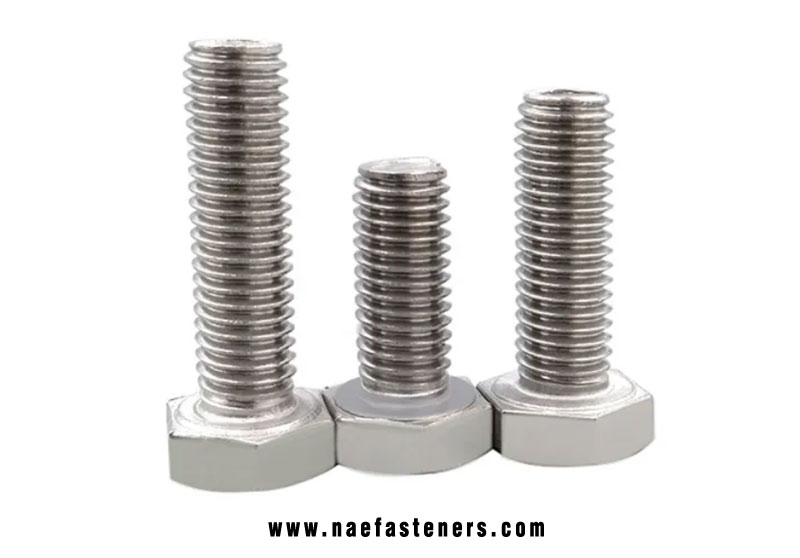

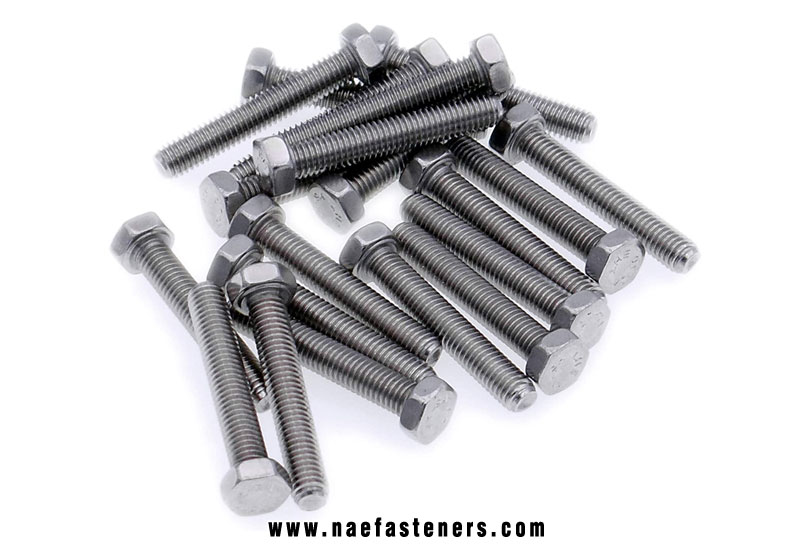

Full Thread Hex Bolts DIN 933
Full-Threaded Hex Bolts: These types of bolts have threaded all over the body and are available in different grades, sizes, material and other specifications. Due to their good strength and resistance, these are used in different applications and get secure properly with the help of a nut.
Bolts produced under specification din 933 are produced fully threaded. This means that the manufacture of the component Din 933 Hexagon Head Bolts With Thread Up To Head. Although there are various hex bolts available in the market today, there are some specifications and standards that make provisions for differently constructed hex bolts. For instance, the Hex Bolts Din 931 has a construction design that is partially threaded.
So unlike the Din 933 Hex Cap Screws, which is a fully threaded coarse thread pitch, the partial threading construction of Din 931 is what separates the two. Another area where fully threaded Hexagon Head Bolts Din 933 prove to be useful is in applications that require a tighter grip. Grip strength is a vital factor while fastening any device or component.
While some components may require a lighter grip, in applications that have thicker walls or cross sections, the Din 933 Hex Head Bolts are an ideal fastener, as they prevent loosening of the device, especially in instances where the occurrence of vibration is an issue. An advantage of a fully threaded fastener such as the Din 933 Hex Bolt is that they rarely shear, in high stress or high pressure applications.
Materials & Grades
- Range : M6 to M64
- Length : Up to 450 mm
- Finish : Black Oxide, Zinc Plating, Hot Dip Galvanized
- Grade : 4.6, 4.8, 5.6, 5.8, 8.8, 10.9, 12.9, B7, B7M
Standards
- IS 1363 / 1364 / 2585 / 3138 / 3640 / 10238
- DIN 933 / 931 / 960 / 961 / 7990 / 610
- BS 1083 / 1768
- ANSI B18.2.1
- ASTM A307
- IS 3757 / 6639
- DIN 6914 / 6915
- ISO 7412
- ASTM A325M / A490M
- BS 1769
Standard Hex Bolts & Screws
| Specifications | Grade | Thread | Diameter | Length |
|---|---|---|---|---|
| DIN 601/558 | GR - 4.6/4.8/5.6/5.8/6.8 | METRIC 6G/8G | M6-M56 | Upto 1 MTR |
| ANSI B.18.2.1 BS 916 | GR - ASTM A 307-A | UNC/UNF-2A BSW/BSF UNC/UNF-2A BSW/BSF | 3/8"-2 INCH 3/8"-2 INCH | Upto 24" |
| BS 4190 | GR - 4.6/4.8/5.6/5.8/6.8/8.8 | UNC/UNF-2A BSW/BSF | 3/8"-2 INCH | Upto 24" |
| DIN 7990 | GR - 4.6/4.8/5.6/5.8/6.8/8.8 | METRIC 6G/8G | M6-M56 | Upto 1 MTR |
| IS:1363 (PART-1) | GR - 4.6/4.8/5.6/5.8/6.8 | UNC/UNF-2A BSW/BSF | 3/8"-2 INCH | Upto 24" |
Precision Hex Bolts & Screws
| Specifications | Grade | Thread | Diameter | Length |
|---|---|---|---|---|
| DIN931/933/ISO 4014/4017 | GR - 4.6/4.8/5.6/5.8/6.8/8.8/10.9/12.9 | METRIC 6G/8G | M6-M56 | Upto 1 MTR |
| BS 3692 | GR - 4.6/4.8/5.6/5.8/6.8/8.8/10.9/12.9 | UNC/UNF-2A BSW/BSF | 3/8"-2 INCH | Upto 24" |
| ASTM A325 |
GR - 8.8/10.9 | UNC/UNF-2A BSW/BSF | M8-M36 | Upto 1 MTR |
| ANSI B.182.1 | GR - ASTM A-449, ASTM A-354, A, B, D | UNC/UNF-2A BSW/BSF | 3/8"-2 INCH | Upto 24" |
| BS 4190 | GR - 4.6/4.8/5.6/5.8/6.8/8.8/10.9/12.9 | METRIC 6G/8G | M8-M80 | Upto 1 MTR |
